New York State Thruway Authority

Vehicle Classification Information

Vehicle classification is based on the height of the vehicle over the first two axles and the total number of axles, including any towed vehicles or trailers.  Vehicles under 7 feet 6 inches in height are considered “LOW” (L).  Vehicles 7 feet 6 inches in height or greater are considered “HIGH” (H).

The total number of axles plus the height designation equals the vehicle class as shown in the table (Figure 1) below. The diagram (Figure 2) below shows approximate vehicle heights in relation to the toll booth. Diagram (Figure 3) below shows examples of axle counts on various vehicles.   Example: Most two-axle passenger vehicles are Class 2L.

Helpful information can also be found in the Frequently Asked Questions.

Figure 1 - Vehicle Class Table
Class Height Number of Axles E-ZPass* Discount
2L UNDER 7 feet 6 inches 2 5%
3L UNDER 7 feet 6 inches 3 5%
4L UNDER 7 feet 6 inches 4 or more 5%
2H 7 feet 6 inches OR GREATER 2 5%
3H 7 feet 6 inches OR GREATER 3 5%
4H 7 feet 6 inches OR GREATER 4 5%
5H 7 feet 6 inches OR GREATER 5 5%
6H 7 feet 6 inches OR GREATER 6 5%
7H 7 feet 6 inches OR GREATER 7 or more 5%

*Discount reflected in E-ZPass Toll Schedules

Figure 2 - Diagram showing approximate vehicle heights in relation to toll booth

Image showing examples of heights of vehicles

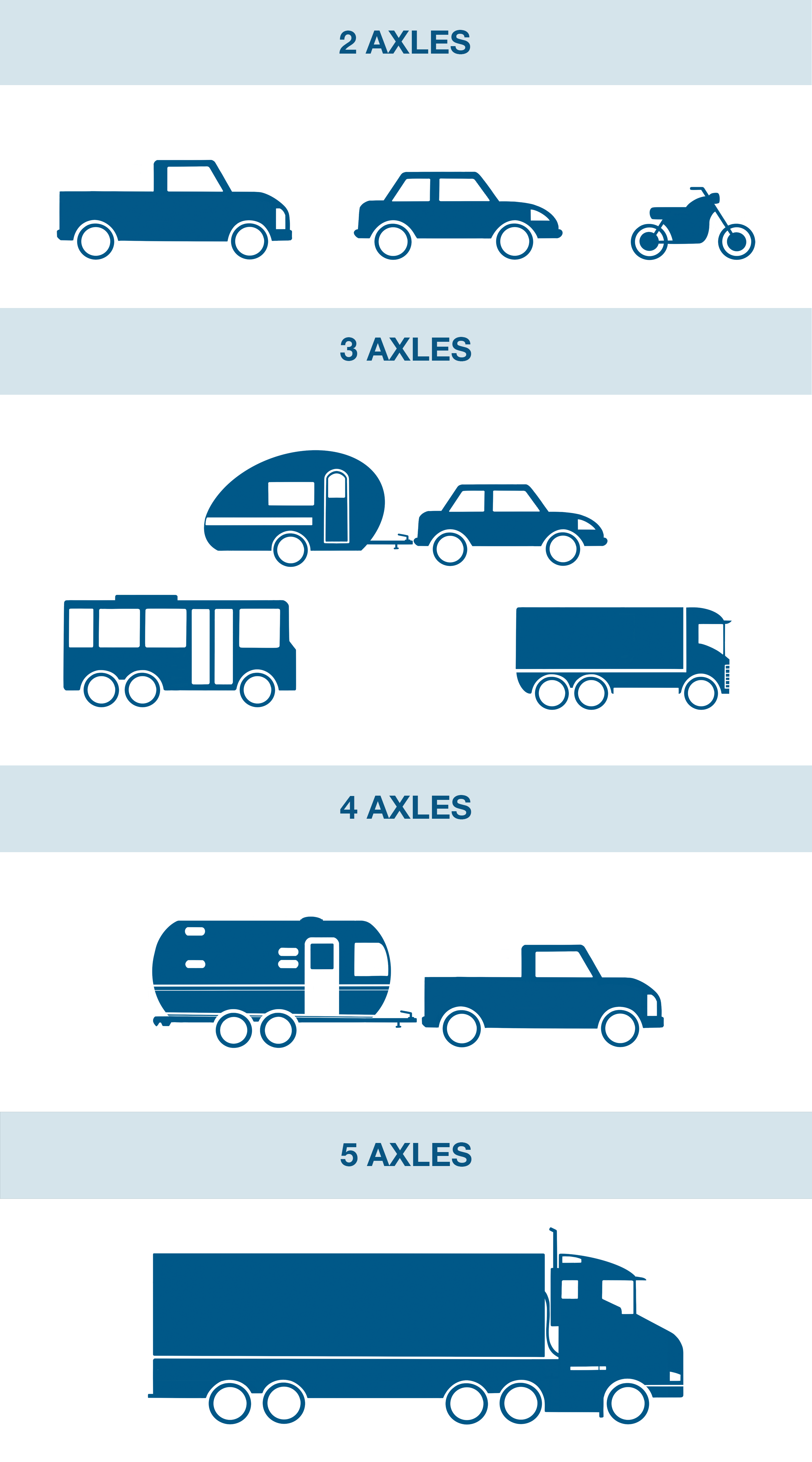

Figure 3 - Examples of axle counts on various vehicles

5 axle truck

5 axles



2 axle car

2 axles



3 axles total, 2 on car, 1 in tow

3 axles
